Description

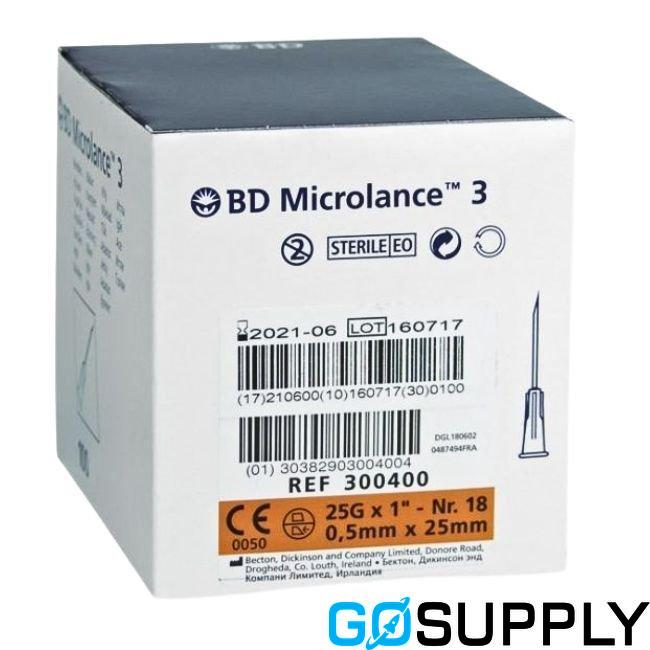

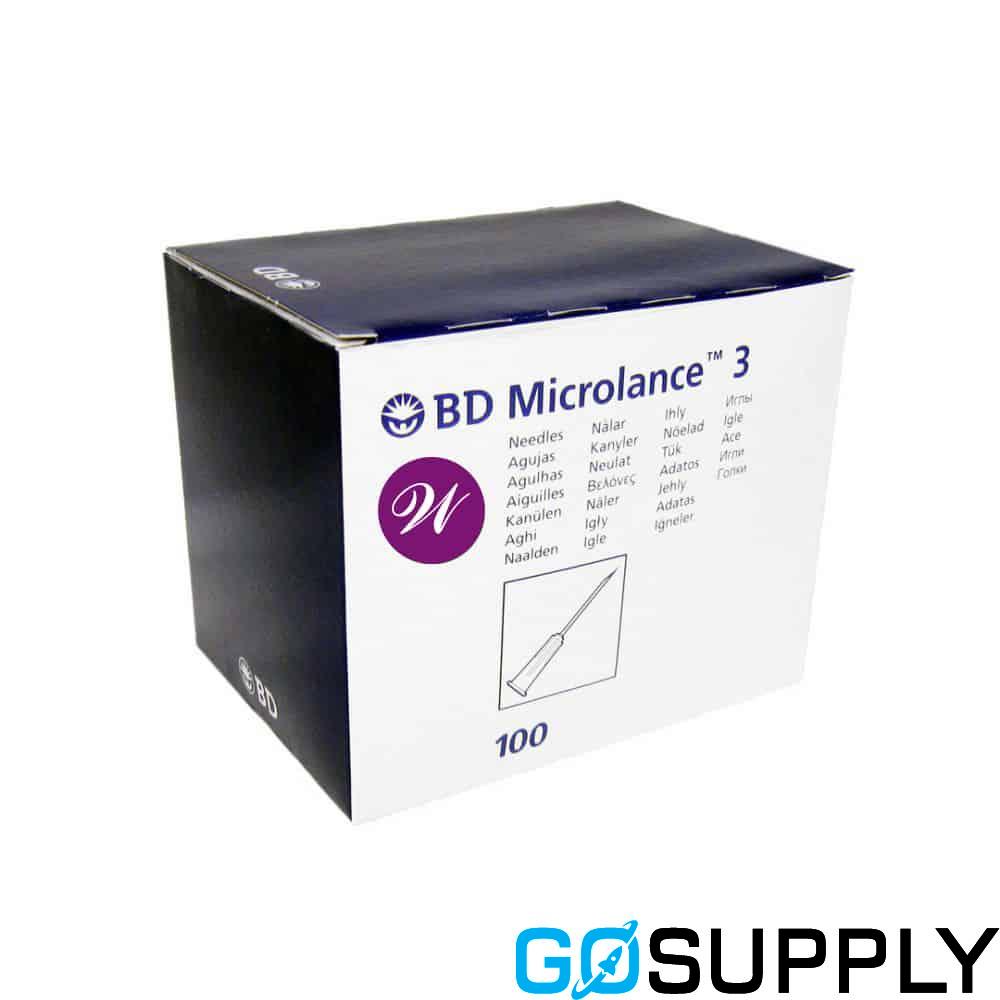

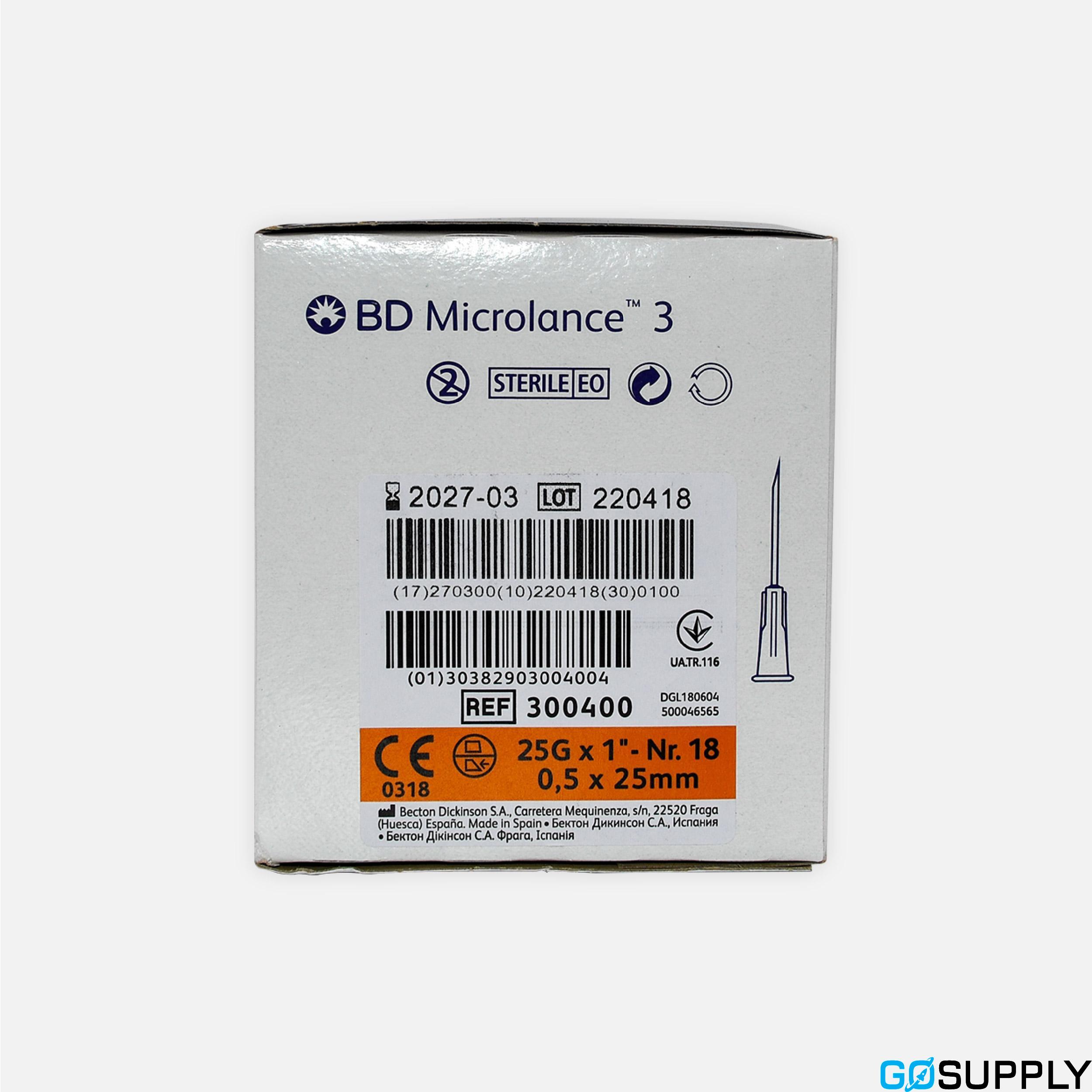

The BD Microlance 3 hypodermic needle, 25G x 25 mm (1 in), is a single-use conventional needle designed for injection and/or aspiration. It features a precisely ground tri-bevel tip with targeted surface polishing and a lubricated cannula to help reduce insertion friction. The regular-wall AISI 304 stainless steel tubing delivers a balanced combination of strength and flow, while the orange color-coded hub supports quick gauge identification in accordance with ISO 6009.

Key Features

• 25G, 25 mm (1 in) needle for general injection and aspiration tasks
• Tri-bevel, polished tip and medical-grade silicone lubrication designed to lower insertion force
• Female luer hub compatible with ISO-compliant luer slip and luer lock syringes (e.g., BD Luer-Lok and Luer-Slip)
• Sterile (EtO sterilized) and intended for single use only
• Orange hub per ISO 6009 for 25G identification

Specifications

• Gauge and length: 25G; 25 mm (1 in)
• Outer diameter (25G): 0.500–0.530 mm (per ISO 6009/BD specification)
• Wall type: Regular
• Bevel: Precisely ground tri-bevel; targeted surface polishing
• Connectivity: Female luer hub

Materials and Biocompatibility

• Cannula: AISI 304 stainless steel
• Hub and shield: Color-coded polypropylene; polypropylene needle shield
• Bonding and lubrication: Epoxy bonding agent; medical-grade silicone oil (typical low residue)
• Not made with natural rubber latex, PVC, or DEHP
• May contain trace Bisphenol A from epoxy adhesive (<5 ppm)
• Biocompatibility: Compliant with ISO 10993

Standards and Compliance

• EN ISO 7864 (sterile hypodermic needles)
• ISO 9626 (stainless steel tubing)
• ISO 6009 (color coding)
• ISO 594-1/-2 (luer connectors)
• EN ISO 11135-1 (ethylene oxide sterilization)
• EN ISO 11607-1/-2 (packaging)
• CE marked; Class IIa under MDD 93/42/EEC Rule 6

Packaging and Storage

• Packaging: Box of 100 sterile needles; typical case pack 5 boxes
• Shelf life: 5 years
• Storage: Store dry at room temperature, away from strong light

Use and Compatibility

• Intended for single use; do not resterilize or reuse
• Compatible with ISO-compliant luer slip and luer lock syringes for injection and/or aspiration by trained personnel

Manufacturing

• Manufacturer: BD
• Production facility: BD Fraga, Spain
