## Description

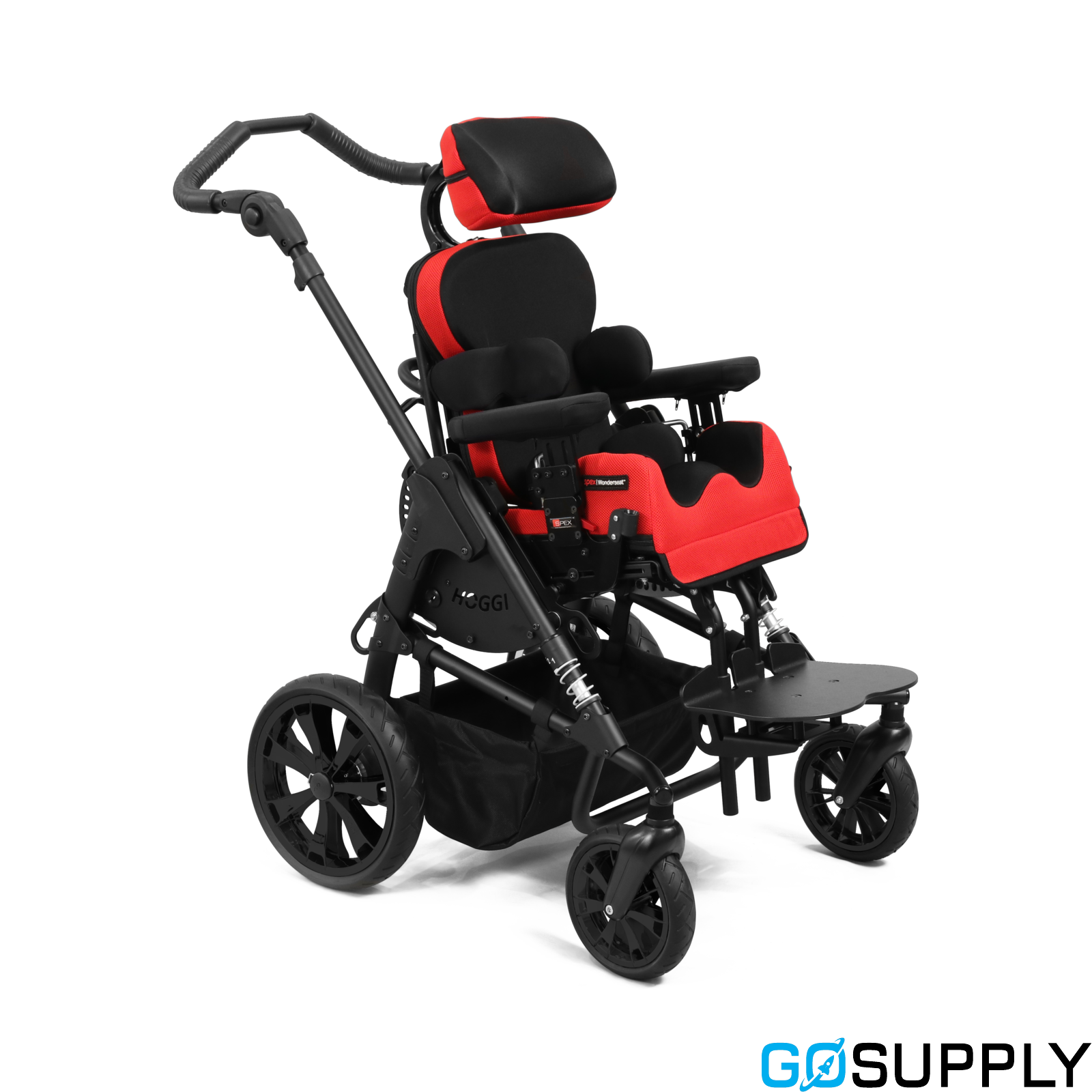

The BINGO Spex Seat by Spex (Medifab) is a pediatric rehabilitative seating system that integrates Spex clinical seating with the BINGO OT rehab stroller base. It provides modular, highly adjustable postural support for children with complex positioning needs and can also mount to the Cobra height‑adjustable indoor base.
### Seating system and posture management
- Spex positioning cushion base with modular pads for on‑the‑spot contouring to address hip/thigh flexion, pelvic obliquity build‑up, and pre‑ischial/anti‑thrust needs.

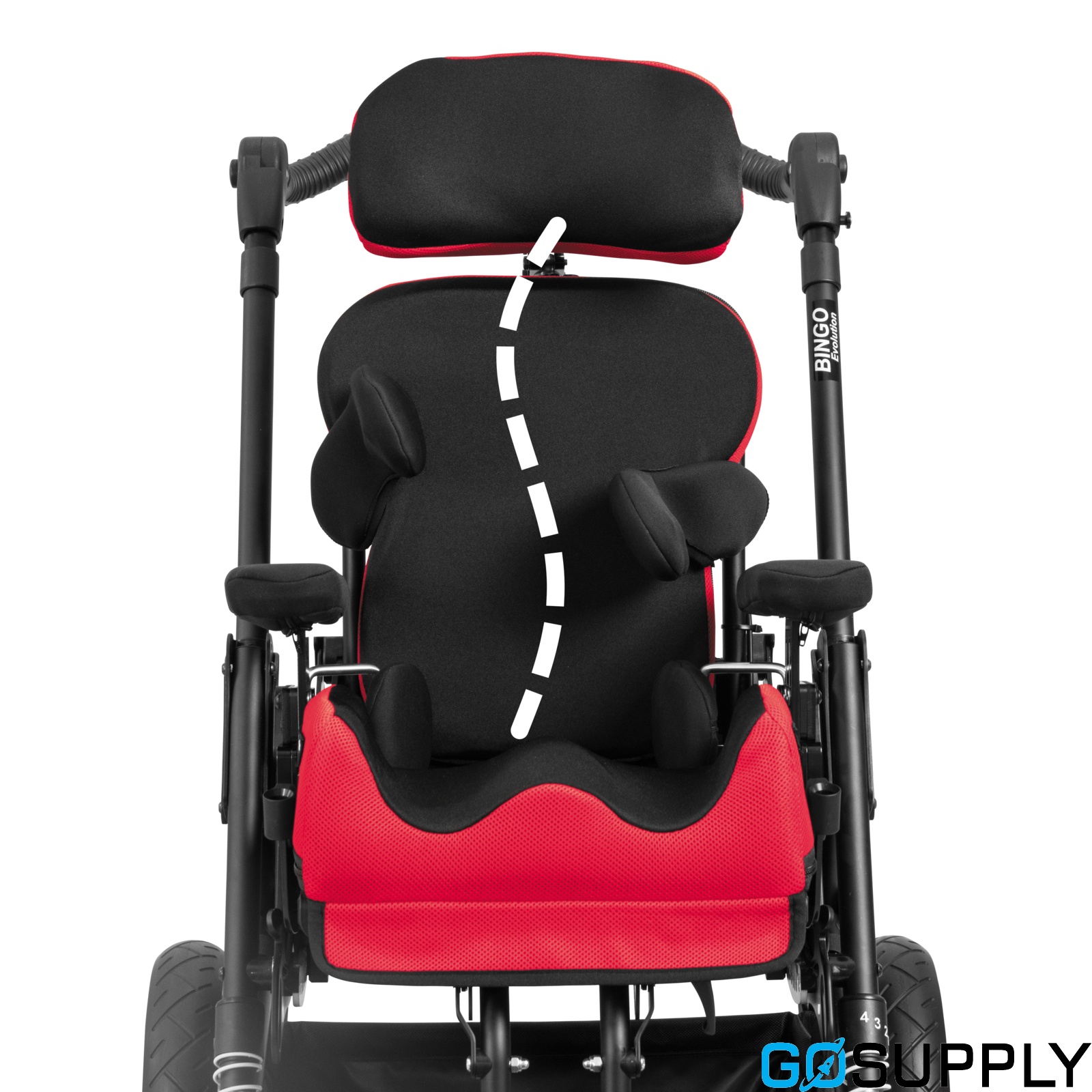

- Spex back support with configurable foam cells to accommodate or assist correction of trunk/spinal asymmetries and reduce pressure.
- Axial Lateral Trunk Supports: width, depth, and multi‑angle adjustable with rotational alignment and swing‑away hardware.
- Axial Pelvic Supports: width/angle/depth adjustable with quick‑release mounting to aid transfers.
- Head support options with inbuilt lateral/occipital support (Standard, Extended, and “Comfi” styles).
- Height‑adjustable padded arm/forearm supports with quick‑release hardware.
- Optional Spex SuperHigh contour cushion for moderate‑to‑high positioning needs.
### Adjustability and daily use
- Forward‑ or rear‑facing orientation (reversible).
- Tilt‑in‑space up to 45°; backrest recline 90–160° (70° range).
- Elevating foot support.
- Seat unit removes for transport/storage and transfers to Cobra indoor base (tilt remains adjustable on Cobra).
### Sizes and user fit
- Sizes: 1 and 2.
- Size 1 user fit: hip width 17–28 cm; seat depth 18–30 cm; back height 36–44 cm; lower leg length 25–40 cm; trunk lateral width 12–28 cm; trunk lateral height 15–34 cm; arm support height 15–22 cm; internal arm support width 20–32 cm; head support height 45–65 cm.
- Size 2 user fit: hip width 22–33 cm; seat depth 23–38 cm; back height 40–48 cm; lower leg length 25–45 cm; trunk lateral width 15–30 cm; trunk lateral height 17–40 cm; arm support height 15–22 cm; internal arm support width 28–38 cm; head support height 50–70 cm.
### Cushions and contours
- Cushion families (seat total width/internal width; recommended depth): Size 1.1 33/23 cm, 18–23 cm; Size 1.2 33/28 cm, 23–30 cm; Size 2.1 38/28 cm, 23–33 cm; Size 2.2 38/33 cm, 28–38 cm.
- Cushion total depth: 33 cm (Size 1) or 38 cm (Size 2). Back cushion width: 33/38 cm; trunk cushion width: 26/30 cm.
- Contours (all variants): side height 14 cm; thigh contour height 9 cm; abductor contour height 5 cm; thigh contour centres 15/17/18/20 cm (by variant); thigh contour depth 10/12 cm (Size 1.1/1.2) and 12/15 cm (Size 2.1/2.2).
### Supports, harnesses, and foot positioning
- Lateral pads: Narrow 8.5 cm (H) × 11.5 cm (D); Broad 10.5 cm (H) × 13 cm (D), with Axial Technology.
- Centrepoint shoulder harness: X‑Small pad 26 × 22 cm; Small pad 36 × 32 cm.
- Hip belts: 2‑point and 4‑point, padded, dual centre‑pull, side‑release buckle (X‑Small/Small pad widths as above).
- Pelvic supports mount to arm support bracket behind cushion troughing.
- Foot options: spacer blocks (reduce lower‑leg length ≈6 cm; not compatible with sandals); sandals with optional raiser blocks; optional padded footplate cover.
### Bases and frame specifications
- Outdoor base: BINGO OT rehab stroller base (matte black) with typical tie‑downs, basket, tray table, and sun canopy.
- Indoor base: Cobra high‑low base with 75 mm castors; separate seat unit available if two seats are preferred.
- Frame capacities: seat depth 18–30 cm (Size 1), 20–38 cm (Size 2); back height 36–46 cm (Size 1), 41–55 cm (Size 2); push bar height 75–110 cm; overall width 63 cm (Size 1), 68 cm (Size 2).
### Capacity and compliance
- Maximum load of seat unit 50 kg (body weight including other load); base frame capacity 60 kg.
- Conforms to AS 3695 (stroller) and AS ISO 16840.4 (seating).
### Colours and intended users
- Colours: Mango Orange, Royal Purple, Chilli Red, Bumblebee Yellow, Leaf Green, Ocean Blue, Calypso Pink, Granite/Grey (and others).
- Intended for pediatric users, commonly 0–5 and 5–12 age groups, with complex seating and positioning needs.
