Description

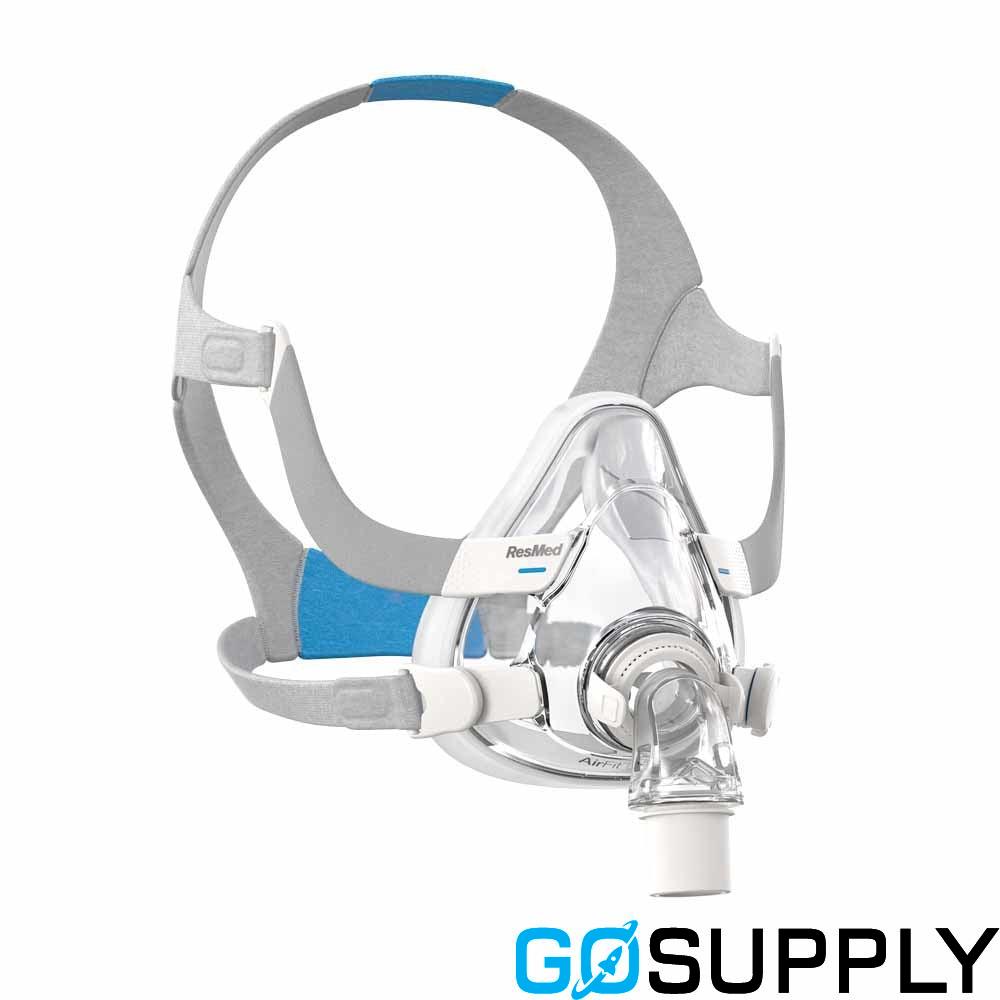

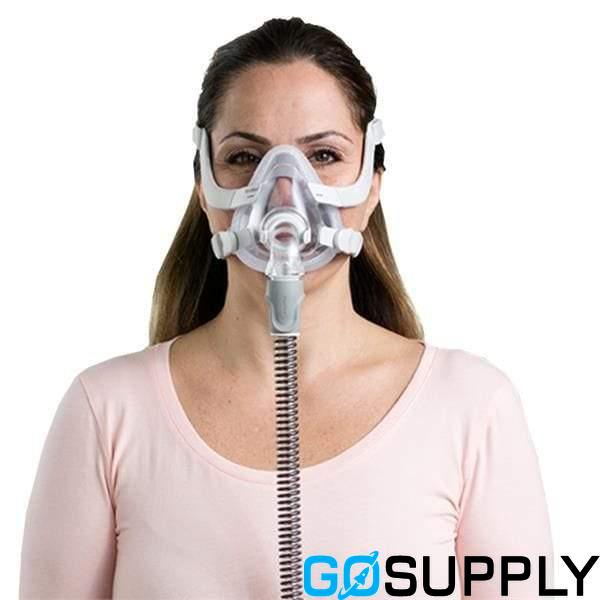

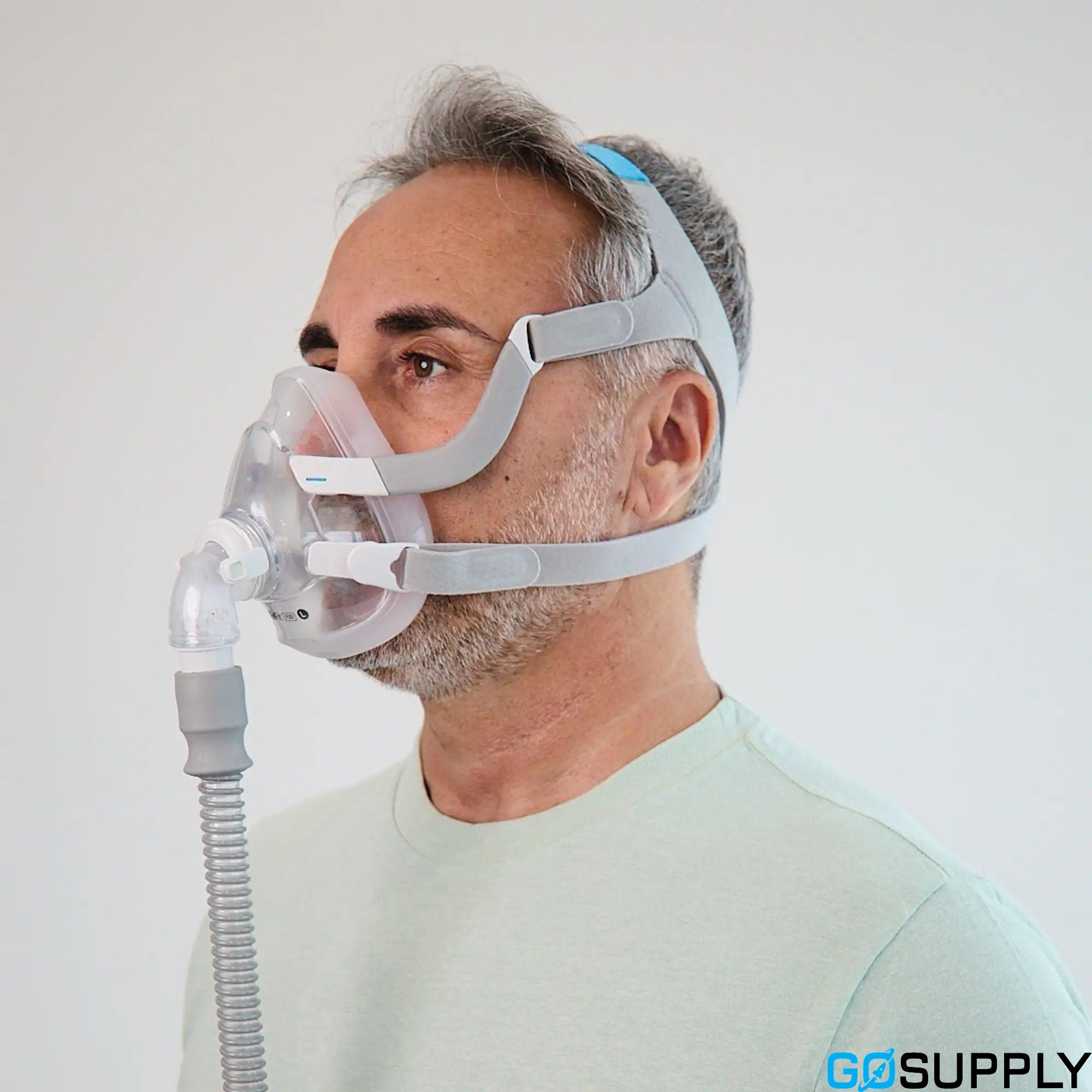

ResMed AirFit F20 is a full-face mask designed to deliver prescribed positive airway pressure (CPAP/APAP/BiLevel) via a comfortable, stable interface covering the nose and mouth. It is intended for use with the supplied elbow that integrates an anti-asphyxia valve (AAV) and vent assembly to support safe operation.

Key features

• InfinitySeal silicone cushion with variable thickness adapts to facial contours to help maintain a reliable seal across a wide pressure range.
• Under-eye, soft, fabric-lined padded frame preserves an open field of vision and accommodates glasses.
• Quick-release magnetic lower clips enable easy on/off without re-adjusting headgear; a non-magnetic clip option is available.
• QuietAir diffused vent reduces perceived noise and disperses exhaled air gently.
• Quick-release elbow with swivel simplifies connection/disconnection and allows freedom of movement.
• Modular design with individually replaceable frame, cushion, headgear, elbow, and clips.

Compatibility and setup

• Compatible with CPAP/APAP/BiLevel devices.
• Universal 22 mm tubing connection.
• Set therapy device mask type to “Full Face.”

Sizes and variants

• Cushion sizes: Small (S), Medium (M), Large (L); one-size frame accepts any F20 cushion.
• Headgear sizes: Small, Standard, Large.
• Variant: AirFit F20 for Her (smaller fit profile).
• Also available in a non-magnetic version (uses non-magnetic clips).

Package contents (typical)

• AirFit F20 frame
• One InfinitySeal cushion (selected size)
• Headgear
• QuietAir elbow assembly
• User instructions

Technical specifications

• Therapy pressure range: 3–40 cm H2O.
• Sound: A-weighted sound power level 30 dBA (±3 dBA); sound pressure level at 1 m 23 dBA (±3 dBA).
• Physical dead space: 240 mL (Large cushion, to end of swivel).
• Pressure drop with AAV closed: 0.2 cm H2O at 50 L/min; 0.6 cm H2O at 100 L/min.
• Inspiratory/expiratory resistance with AAV open (at 50 L/min): 0.6 / 0.7 cm H2O.
• AAV open/closed-to-atmosphere pressure: ≤3 cm H2O.
• Dimensions (mask with elbow, no headgear): 154 mm (H) × 159 mm (W) × 147 mm (D).
• Operating environment: 5–40°C; 15–95% RH non‑condensing. Storage/transport: −20 to +60°C; ≤95% RH non‑condensing.
• Materials: Not made with PVC or phthalates (DEHP, DBP, BBP); not made with natural rubber latex. Magnets within ICNIRP guidelines for general public use.

Safety information

• Contains magnets: keep mask magnets at least 150 mm (6 in) from susceptible implants/devices in the user or close contacts. Consider the non‑magnetic version if applicable.
• Ensure the therapy device is running whenever the mask is worn; keep vent holes and the AAV clear. Do not use if valve/vent is damaged.
• Supervision required for users unable to remove the mask unassisted; may not suit users predisposed to aspiration.
• When using supplemental oxygen: turn off oxygen when the PAP device is not operating; keep away from open flames/smoking; use in a well‑ventilated room.
• Avoid connecting flexible PVC accessories directly to mask parts.

Cleaning and maintenance (home use)

• Daily: Disassemble and handwash cushion, frame, and elbow in warm (~30°C) water with mild liquid detergent; rinse thoroughly; air‑dry out of direct sunlight.
• Weekly: Handwash headgear separately; rinse, gently squeeze out water, and air‑dry.
• Inspect regularly and replace any component showing cracks, discoloration, tears, or deterioration.

Storage, disposal, and service life

• Store clean and dry, out of direct sunlight. Dispose of with normal household refuse (no hazardous substances). Service life depends on usage, maintenance, and environment; replace mask/components as needed.

Sizing support

• A printable sizing template is available from the manufacturer to help select S/M/L cushion size.
